PITCH mm 1,27

Material

Contact Material: Brass
Contact Plating: Au Over Ni
Insulator Material: Polyester (UL94V-0)
Standard: PA6T
Max processing temp: 230°C for 30-60 seconds 260°C for 10 seconds

Electrical

Rated Current:1.0 AMP
Contact Resistance: 20mΩ Max
Withstand Voltage: 500V AC/DC
lnsulation Resistance: 1.000MΩ Min
Operation temperature: - 40°C to + 105°C

PH127-1XXDXYYYC

MALE HEADER - SINGLE ROW - PITCH mm 1,27 - STRAIGHT - THT -

Datasheets:

PH127-1XXDFYYYG

PH127-2XXDXYYYC

MALE HEADER - DOUBLE ROW - PITCH mm 1,27 - STRAIGHT - THT -

Datasheets:

Titolo 2 Titolo 1 descrizione aggiuntiva.

PH127-1XXRXYYYA

MALE HEADER - SINGLE ROW - PITCH mm 1,27 - RIGHT ANGLE - THT -

Datasheets:

Titolo 2 Titolo 1 descrizione aggiuntiva.

PH127-2XXRXYYYG

MALE HEADER - DOUBLE ROW - PITCH mm 1,27 - RIGHT ANGLE - THT -

Datasheets:

Titolo 2

PH127-1XXMXYYYC

MALE HEADER - SINGLE ROW - PITCH mm 1,27 - STRAIGHT - SMT -

Datasheets:

Titolo 2 Titolo 1 descrizione aggiuntiva.

PH127-2XXMXYYYG

MALE HEADER - DOUBLE ROW - PITCH mm 1,27 - STRAIGHT - SMT -

Datasheets:

PH127-2XXMFYYYA PH127-2XXMFYYYC PH127-2XXMFYYYG

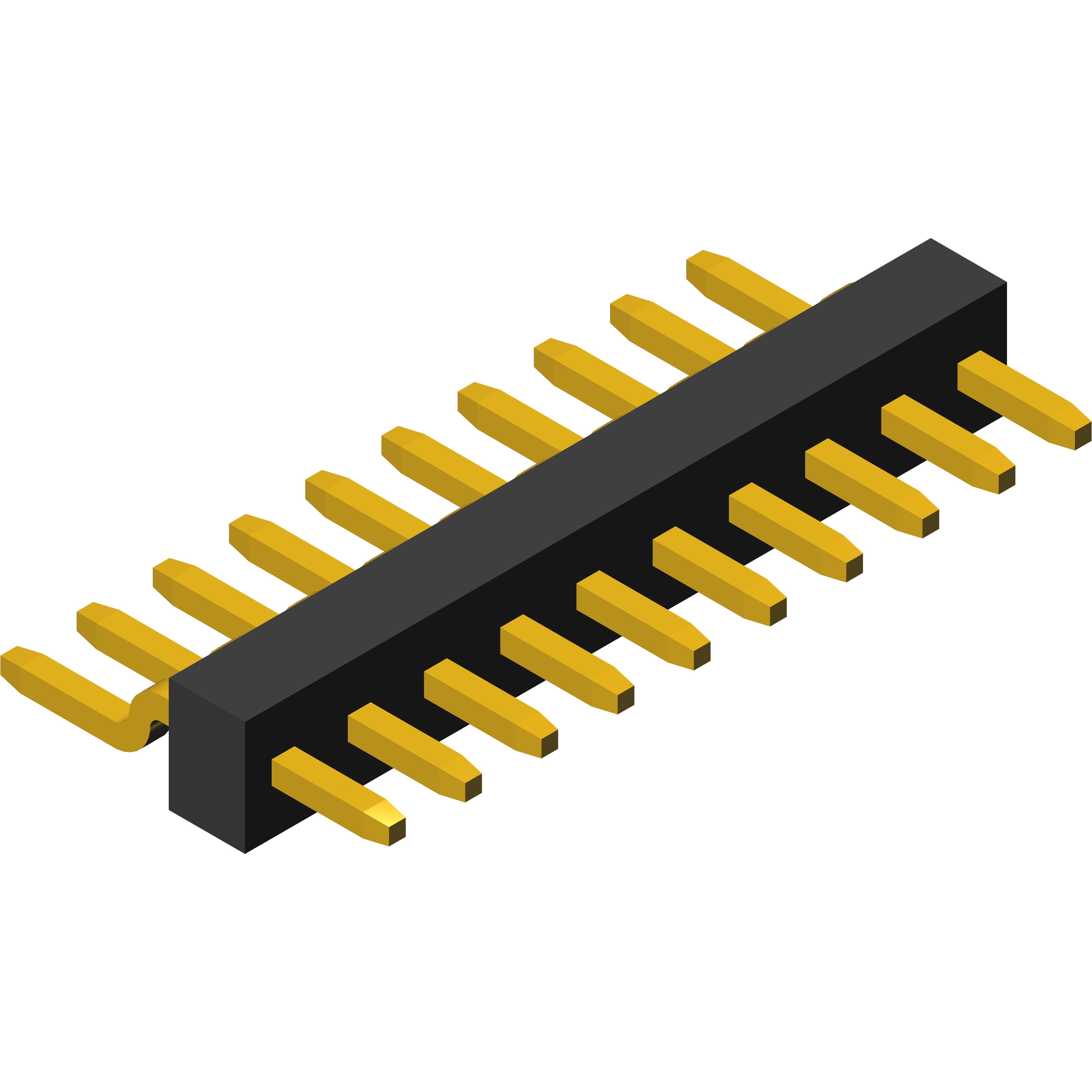

PH127-1XXNXYYYG

MALE HEADER - SINGLE ROW - PITCH mm 1,27 - RIGHT ANGLE - THT -

Datasheets:

Titolo 2 Titolo 1 descrizione aggiuntiva. PH127-1XXNFYYYG

PH127-2XXNXYYYA

MALE HEADER - DOUBLE ROW - PITCH mm. 1,27 - RIGHT ANGLE - SMT -

Datasheets:

Titolo 2 Titolo 1 descrizione aggiuntiva. PH127-1XXNFYYYG

PH127-1XXDXYYYA

MALE HEADER - SINGLE ROW - PITCH mm 1,27 - STRAIGHT - THT -

Datasheets:

Titolo 2

PH127-2XXDXYYYA

MALE HEADER - DOUBLE ROW - PITCH mm 1,27 - STRAIGHT - THT -

Datasheets:

Titolo 2

PH127-1XXDXYYYB

MALE HEADER - SINGLE ROW - PITCH mm 1,27 - STRAIGHT - THT - DOUBLE INSULATOR

Datasheets:

PH127-1XXDFYYYB20 PH127-1XXDFYYYB3B PH127-1XXDFYYYH PH127-1XXDFYYYK

PH127-2XXDXYYYB

MALE HEADER - DOUBLE ROW - PITCH mm 1,27 - STRAIGHT - THT - DOUBLE INSULATOR

Datasheets:

PH127-2XXDFYYYB2 PH127-2XXDFYYYK

PH127-1XXMXYYYB

MALE HEADER - SINGLE ROW - PITCH mm 1,27 - STRAIGHT - SMT - DOUBLE ROW

Datasheets:

PH127-1XXMFYYYB PH127-1XXMFYYYH PH127-1XXMFYYYJ PH127-1XXMFYYYK PH127-1XXMFYYYN PH127-1XXMXYYYB3X

PH127-2XXMXYYYB

MALE HEADER - DOUBLE ROW - PITCH mm 1,27 - STRAIGHT - SMT -

Datasheets:

PH127-2XXMFYYYBXXXA PH127-2XXMFYYYJ
