PITCH mm 3,96

Material

  • Contact Material: Brass
  • Contact Plating: Au Over Ni
  • Insulator Material: Polyester (UL94V-0)
  • Standard: LCP
  • Max processing temp: 230°C for 30-60 seconds 260°C for 5 seconds

Electrical

  • Rated Current: 5 AMP
  • Contact Resistance: 20mΩ Max
  • Withstand Voltage: 500V AC/DC
  • lnsulation Resistance: 1.000MΩ Min
  • Operation temperature: - 40°C to + 105°C

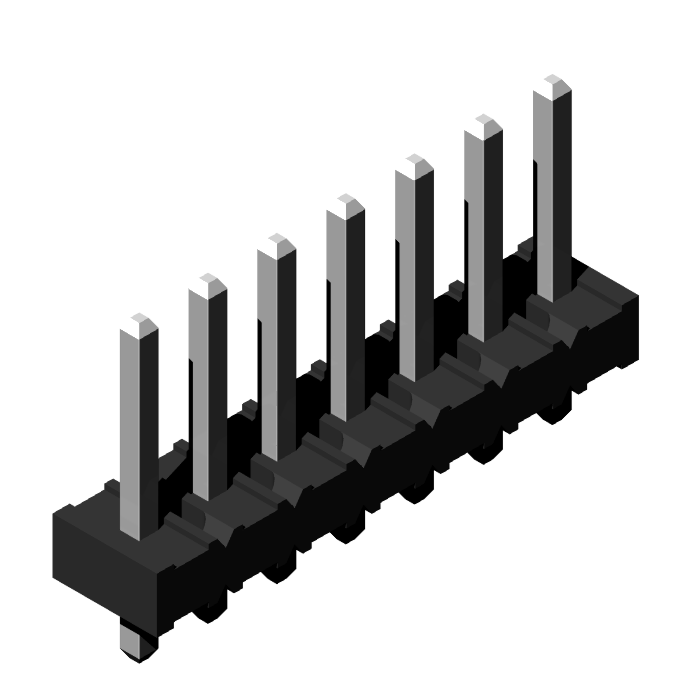

PH396-1XXDXYYYM

PH396-1XXDXYYYM

MALE HEADER - SINGLE ROW - PITCH mm 3,96 - STRAIGHT - THT -

Datasheets:

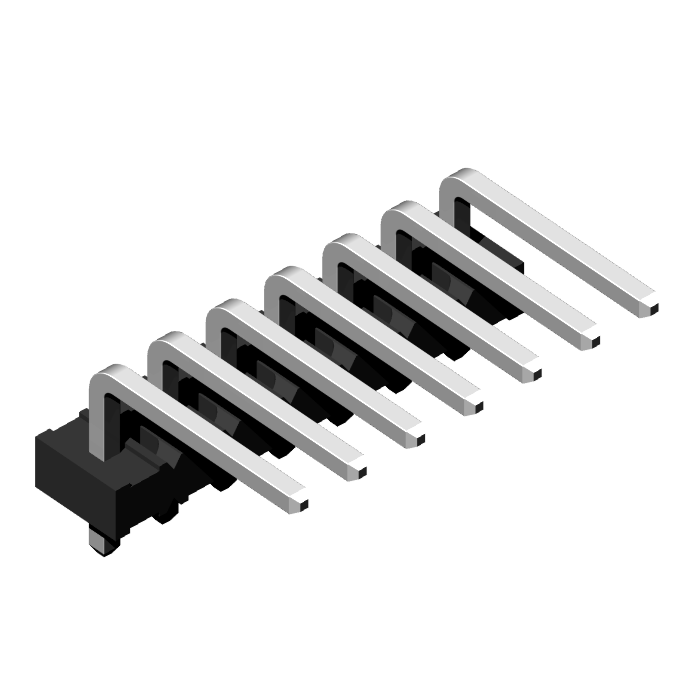

PH396-1XXRXYYYM

PH396-1XXRXYYYM

MALE HEADER - SINGLE ROW - PITCH mm 3,96 - RIGHT ANGLE - THT -

Datasheets:
PH396-1XXMXYYYM

PH396-1XXMXYYYM

MALE HEADER - SINGLE ROW - PITCH mm 3,96 - STRAIGHT - SMT -

Datasheets:
