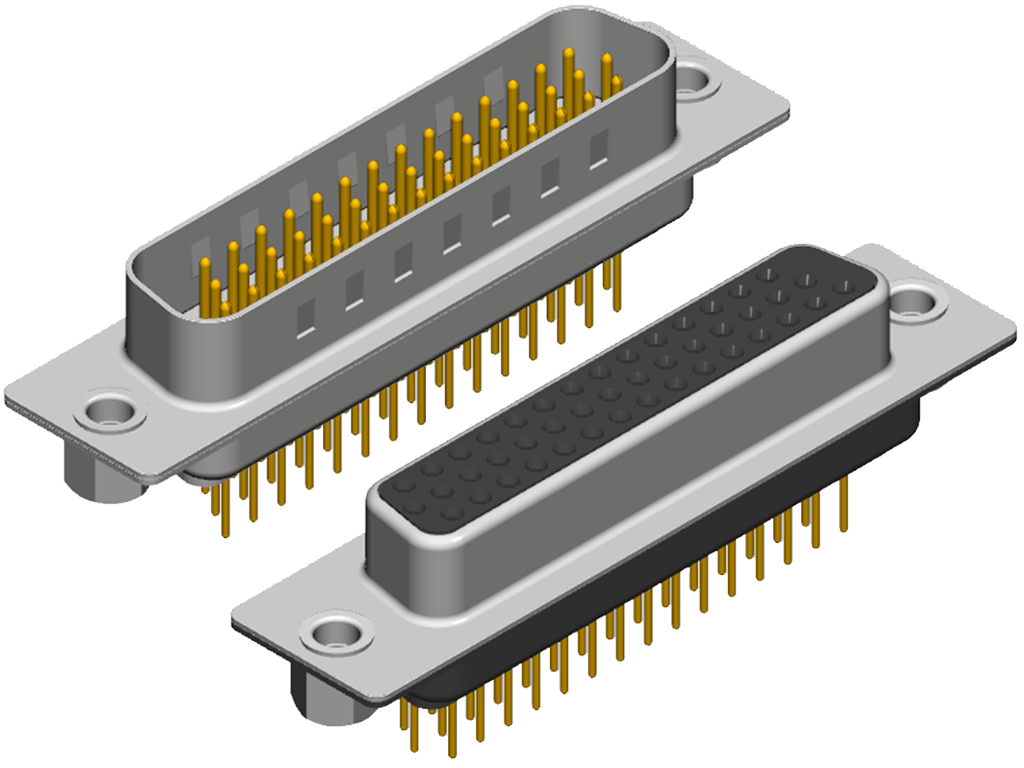

D-SUB HIGH DENSITY
Material
- Insulator: Glass-Filled Thermoplastic PBT, UL94V-0 rated
- Contact: Brass
- Shell: Steel, 100u” Tin Over 50u” min Copper
- Clinch Nut: Brass, 100u” min Nickel Plated
- Boardlock: Brass, 100u” min Tin Plated
- Screwlock: Brass, 100u” min Nickel Plated-60 seconds 260°C for 10 seconds
Electrical
- Contact Resistance: 20 milliohms Max at 1 AMP DC
- Insulation Resistance: 1000 megohms at 500 VDC
- Dielectric Withstanding Voltage: 1000 VAC/rms 60Hz for 1 minute
- Current Rating: 3 AMP
- Voltage Rating: 250 VAC/rms 60Hz
